Запчасть |
| 1 |

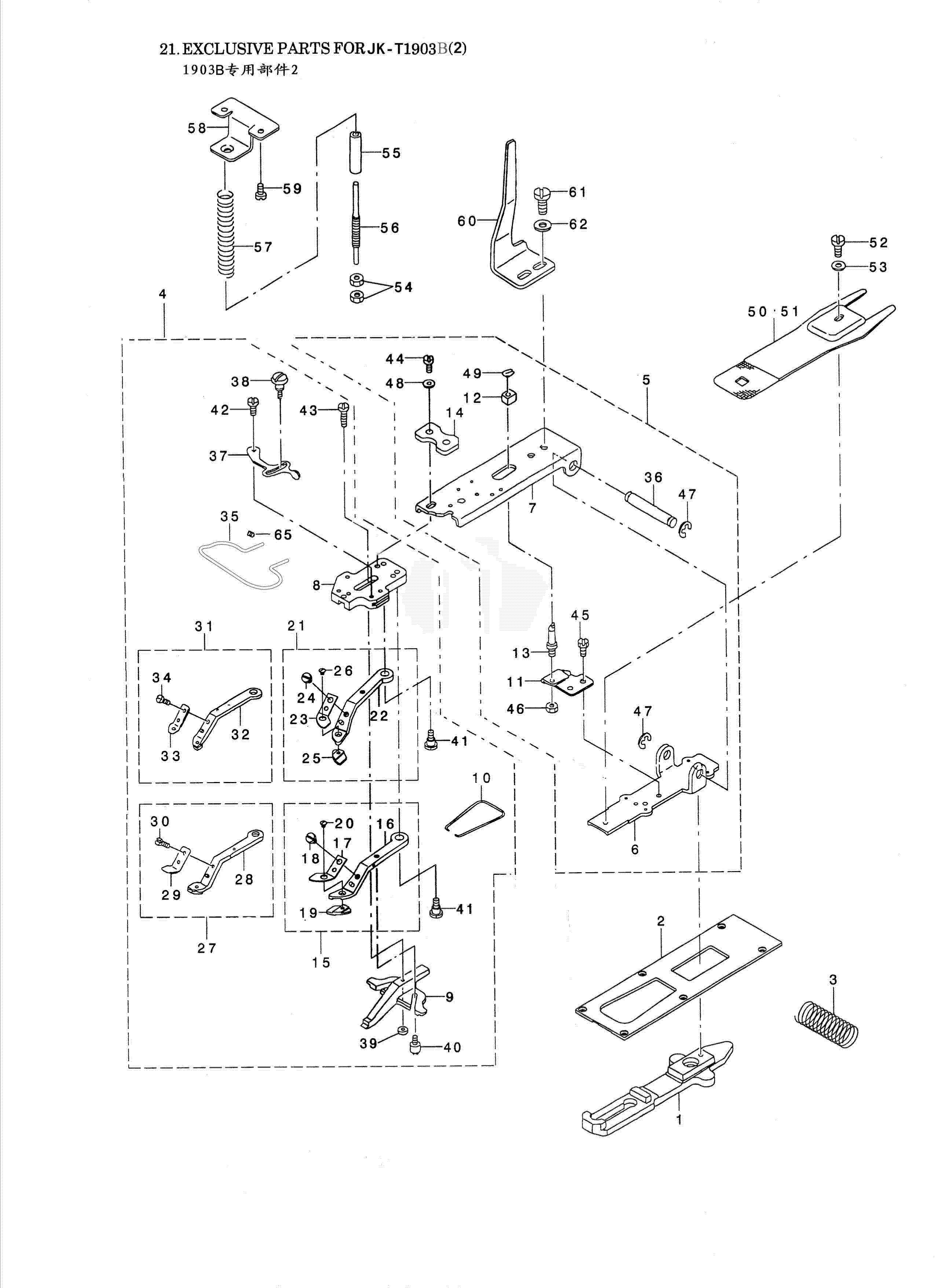

JK-1900B 40504002CLOTH FEED PLATE
|
|
| 2 |
JK-1900B 40512017CROTH FEED PRESSER PLATE В
|
|
| 3 |
JK-1900B 40527015VERTICAL FEED SHAFT SPRING
|
|
| 4 |
JK-1900B 40521601200VERY SMALL CLAMP MECHANISM ASM.
|
|
| 5 |
JK-1900B 4032800300MEDIUM CLAMP MECHANISM ASM.
|
|
| 6 |
JK-1900B 40512005PICK-UP INSTALING BASE
|
|
| 7 |
JK-1900B 40512004PICK-UP FOOTINSTALING BASE
|
|
| 8 |
JK-1900B 40509003PICK-UP FOOTINSTALING BASE
|
|
| 9 |
JK-1900B 40501004BUTTON CLAMP SLIDE
|
|
| 10 |
JK-1900B 40527010BUTTON CLAMP JAW LEVER SPRING
|
|
| 11 |
JK-1900B 40512006SUPPORT PLATE
|
|
| 12 |
JK-1900B 40509002SLIDE BLOCK
|
|
| 13 |
JK-1900B 405S30001STATIONING BLOCK SHAFT
|
|
| 14 |
JK-1900B 40512010PRESSER PLATE
|
|
| 15 |
JK-1900B MIDDLE CLAMP JAW LEVER ASM. , R
|
|
| 16 |
JK-1900B 40516001MIDDLE CLAMP JAW LEVER , R
|
|
| 17 |
JK-1900B 40527002SPRING, RIGHT
|
|
| 18 |
JK-1900B 405S11003ВИНТ 9/64-40 L=3. 5
|
|
| 19 |
JK-1900B 40516002PLATE L, R
|
|
| 20 |
JK-1900B 201S17001ВИНТ 3/32-56 L=3
|
|
| 21 |
JK-1900B MIDDLE CLAMP JAW LEVER ASM. , L
|
|
| 22 |
JK-1900B 40516003MIDDLE CLAMP JAW LEVER , L
|
|
| 23 |
JK-1900B 40527003SPRING, LEFT
|
|
| 24 |
JK-1900B 405S11003ВИНТ 9/64-40 L=3. 5
|
|
| 25 |
JK-1900B 40516004PLATE L, L
|
|
| 26 |
JK-1900B 201S17001ВИНТ 3/32-56 L=3
|
|
| 27 |
JK-1900B EXTRA SMALL CLAMP LEVER ASM. , R
|
|
| 28 |
JK-1900B EXTRA SMALL CLAMP LEVER ASM. , R
|
|
| 29 |
JK-1900B SPRING, RIGHT
|
|
| 30 |
JK-1900B ВИНТ 9/64-40 L=3. 5
|
|
| 31 |
JK-1900B EXTRA SMALL CLAMP LEVER ASM. , L
|
|
| 32 |
JK-1900B EXTRA SMALL CLAMP LEVER ASM. , L
|
|
| 33 |
JK-1900B SPRING, LEFT
|
|
| 34 |
JK-1900B ВИНТ 9/64-40 L=3. 5
|
|
| 35 |
JK-1900B 40527016FINGER GUARD
|
|
| 36 |
JK-1900B 40526001INSTALLING SHAFT
|
|
| 37 |
JK-1900B 40912003SNAP FASTENER CLAMP STOP LEVER
|
|
| 38 |
JK-1900B 409S20003CLAMP ВИНТ A
|
|
| 39 |
JK-1900B 405s20006NUT
|
|
| 40 |
JK-1900B 405s20007BUTTON CLAMP STOP PIN
|
|
| 41 |
JK-1900B 405S20005HINGE ВИНТ D=6. 35 H=3.9
|
|
| 42 |
JK-1900B 409S20002HINGE ВИНТ D=5. 5 H=1.8
|
|
| 43 |
JK-1900B 405S20004HINGE ВИНТ D=5. 5 H=3
|
|
| 44 |
JK-1900B 409S12001ВИНТ 3/16-32 L=13.5
|
|
| 45 |
JK-1900B 405S12001ВИНТ 11/64-40 L=4
|
|
| 46 |
JK-1900B 401S16002NUT 15/64-28
|
|
| 47 |
JK-1900B H03006E-RING 7
|
|
| 48 |
JK-1900B W01013WASHER 5X10. 5X1
|
|
| 49 |
JK-1900B H05007SNAP RING, FOR CONNECTING ROD
|
|
| 50 |
JK-1900B 40515004PRESSURE PLATE
|
|
| 51 |
JK-1900B 40515005PRESSURE PLATE
|
|
| 52 |
JK-1900B 405S12003ВИНТ 11/64-40 L=5.3
|
|
| 53 |
JK-1900B W01013WASHER 5X10.5X1
|
|
| 54 |
JK-1900B 405S16001THREAD TENSION NUT
|
|
| 55 |
JK-1900B 40503002SLEEVE
|
|
| 56 |
JK-1900B 405S30004ADJUSTING SHAFT
|
|
| 57 |
JK-1900B 40527005PRESSURE SPRING
|
|
| 58 |
JK-1900B 40512007ACCEPT PLATE, UPPER
|
|
| 59 |
JK-1900B 403s13011ВИНТ
|
|
| 60 |
JK-1900B 40512008MOVING PLATE
|
|
| 61 |
JK-1900B 405S12002ВИНТ 15/64-28 L=11
|
|
| 62 |
JK-1900B 40128014WASHER 6.1X15. 2X2.5
|
|
| 65 |
JK-1900B 405s15001ВИНТ 9/64-28 L=11
|
|
1 FRAME & MISCELLANEOUS COVER COMPONENTS
2 MAIM SHAFT & NEEDLE BAR COMPONENTS
3 PRESSER LIFTER & WIPER COMPONENTS
4 SHUTTLE DRIVER SHAFT COMPONENTS
5 THREAD TENSION COMPONENTS
6 THREAD TRIMMER MECHANISM COMPONENTS
7 FEED MECHANISM COMPONENTS
8 PRESSER MECHANISM COMPONENTS
9 SENSOR COMPONENTS
10 THREAD STAND COMPONENTS
11 TABLE STAND COMPONENTS
12 CONTROL BOX COMPONENTS
13 OPERATION PANEL COMPONENTS
14 ACCESSORIE PART COMPONENTS
15 EXCLUSIVE PARTS FOR JK-T1903B
16 EXCLUSIVE PARTS FOR JK-1903B
17 ACCESSORIES PARTS FOR 1903B
18 ACCESSORIES PARTS FOR 1904B AND 1906B
